SPECIFICATIONS
| WIRELESS
| Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
| WiFi Speeds: AC750, 5 GHz: 433 Mbps (802.11ac), 2.4 GHz: 300 Mbps (802.11n)
| WiFi Range: 2 Bedroom Houses, 4 x Fixed Antennas, Multiple antennas form a signal-boosting array to cover more directions and large areas
| WiFi Capacity: Medium, Dual-Band, Allocate devices to different bands for optimal performance
| Working Modes: Router Mode, Access Point Mode, Range Extender Mode
|
| HARDWARE
| Processor: Single-Core CPU
| Ethernet Ports: 1x 10/100 Mbps WAN Port, 4x 10/100 Mbps LAN Ports
| Buttons: WPS/Reset Button
| Power: 9 V, 0.6 A
|
| SECURITY
| WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
| Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
| Guest Network: 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network
|
| SOFTWARE
| Protocols: IPv4, IPv6
| Parental Controls: URL Filtering, Time Controls
| WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
| Quality of Service: QoS by Device
| NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
| IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
| DHCP: Address Reservation, DHCP Client List, Server
| DDNS: NO-IP, DynDNS
| Management: Tether App, Webpage, Check Web Emulator
|
| PHYSICAL
| Dimensions: 115 x 106.7 x 24.3mm

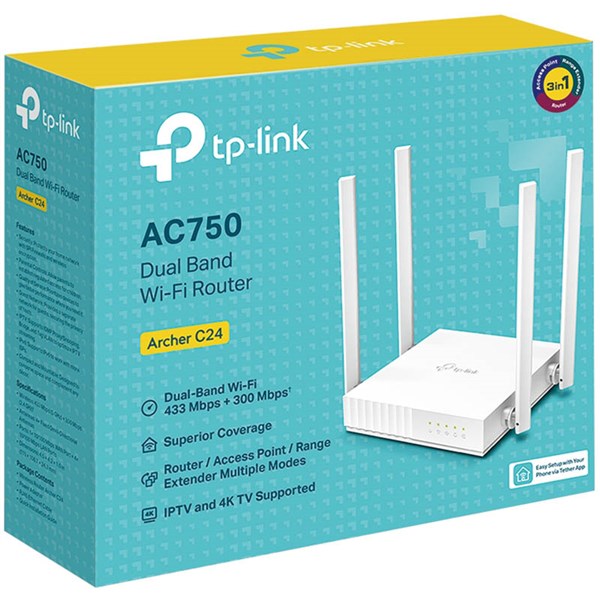

| Package Contents: Wi-Fi Router Archer C24, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
|
| TEST DATA
| WiFi Transmission Power: CE:- Less than 20dBm(2.4GHz), Less than 23dBm(5GHz)
| WiFi Reception Sensitivity: 5GHz:- 11a 54M: -76dBm, 11ac VHT20 MCS8: -71dBm, 11ac VHT40 MCS9: -66dBm, 11ac VHT80 MCS9: -62dBm, 2.4GHz:- 11g 54M: -76dBm, 11n HT20 MCS7: -73dBm, 11n HT40 MCS7: -71dBm
|
| OTHER
| System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
| Certifications: FCC, CE, RoHS
| Environment: Operating Temperature: 0 to 40C, Storage Temperature: -40 to 60C, Operating Humidity: 10% to 90% non-condensing, Storage Humidity: 5% to 90% non-condensing
| Colour: White
| OEM: NWTL-ARCHERC24
