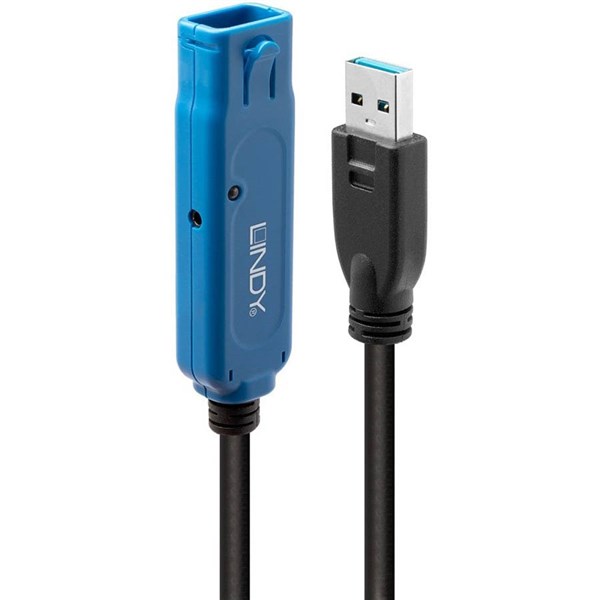

LINDY 43158 ACTIVE PRO EXTENTION CABLE USB-A 3.0 8M BLACK/BLUE

Code: 7104014   Brand: LINDY
BONUS: Purchase 1 and receive 1 x LINDY 43157 ACTIVE PRO EXTENTION CABLE USB-A 3.0 10M BLACK/BLUE
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances
| With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably
| This extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro
| This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 50m (depending on the cable configurations used)
| This cable features a single active repeater module to boost the USB signal
| A fully deployed extension system is limited to a maximum of 50m and 5 repeater modules
| Any combination of cables and a single hub can be connected providing the 50m/5 repeater limit is not exceeded
| The extension hub must always be the last segment of the extension system
| This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments
| High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device
| Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
| Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
| Easy to use - connects to the device's existing USB cable (5m maximum)
| 2 year warranty

$222.73

EACH
Please note: Prices are shown excluding GST (where applicable) and are in AUD$
SPECIFICATIONS
| Connectors
| Connector A: USB Type A Male
| Connector B: USB Type A Female
| Power: 2.5/0.7mm DC Connector
| Housing Material: Plastic
| Connector Plating: Nickel
| Pin Construction: Brass
| Pin Plating: Gold Flash
| Dimensions - USB A Male: 15 x 49 x 8mm
| Dimensions - USB A Female: 20 x 80 x 13mm
|
| Cable Construction
| Length: 8m
| Standard: USB 3.1 Gen 1 / 3.0
| Colour: Black
| Type: Round
| Jacket Diameter: 7mm +/- 0.15mm
| Jacket Material: Half matt PVC low toxic
| Conductor Material: Tinned Copper
| Conductor Gauge: 24/24/20AWG
| Shielding: AL Mylar and braid
| Supported Bandwidth: 5 Gbps
| Nominal Attenuation: 0.064MHz - less than 0.08dB, 0.256MHz - less than 0.11dB, 0.512MHz - less than 0.13dB, 0.772MHz - less than 0.15dB, 1.0MHz - less than 0.20dB, 4MHz - less than 0.39dB, 8MHz - less than 0.57dB, 12MHz - less than 0.67dB, 24MHz - less than 0.95dB, 48MHz - less than 1.35dB, 96MHz - less than 1.90dB, 200MHz - less than 3.20dB, 400MHz - less than 5.80dB
| Minimum Bend Radius: 36mm
| Operating Temperature: 0C - 50C
| Storage Temperature: -20C - 60C
| Transmission Medium: Twisted Pair
| Transmission Technology: USB 3.1 Gen 1 / 3.0
|
| Miscellaneous
| Packaging Type: Carton Box
| Packaging Dimensions: 240 x 200 x 70mm
| Net Weight: 0.75kg
| Gross Weight: 0.9kg
| Warranty: 2 Years
| Certificated: CE, FCC, RoHS and REACH
| OEM: 43158
